Best High Gain WiFi Antenna

Updated 2021

WiFi or Wireless Network functions in the same as the other 2.4 GHz communication band but rather than sending the voice, we will be transmitting internet data packets.[AdSense-C] A device known as a wireless router or access point converts these data packets into electromagnetic waves and will be emitted out via a transmitting antenna, which will be received by the client device. Here we are presenting the list of the world best Best WiFi Antennas available on the market.

WiFi 101 Playlist from RootSaid

Wavelength and Frequency

As mentioned above, the RF waves of the WiFi signals are radio waves that is electromagnetic waves that lie in the range of predefined frequency range. Like all electromagnetic waves, Radio Frequency is also measured in a unit called Frequency.

WiFi Antennas Explained – Types of WiFi Antennas

The frequency of occurrence of something happening within a particular time period or it is the number of complete cycles per unit of time. For example, if you could type 4 characters in a second, then the frequency is 4. Hertz is the unit of frequency. 1 Hertz means one complete cycle per second.

Another unit of measuring waves is Wavelength. Wavelength is the time period of a wave.

Frequency = Speed of Wave / Wavelength

Wavelength and Frequency are inversely related. The higher the wavelength, the shorter the frequency. Design of the antenna and its parts crucially depends upon the frequency and wavelength of the wave it will be transmitting or receiving.

WiFi communication uses a frequency of 2.4 GHz or 5 GHz.

Do router antennas make a difference

Each Router includes some form of antenna. Some are visible, such as external antennas, while others are not. In general, an external antenna has an efficiency of approximately 95; whereas the internal antenna has an efficiency of approximately 75. Internal and external antennas are still nearly equal in terms of efficiency in practice.

Because the antennas are basically external, they must also be connected via cable, and the connection points and cable contribute to the difference’s efficiency loss. Interference will also be introduced where wires cross over electronic components.

External antennas

Connectors on the circuit board may occasionally become loose due to rough handling, resulting in an unreliable connection and diminished effects.

External antennas have the best aerial gain

Antenna gain is the ratio of an antenna’s effectiveness, the direction in which it transmits, and the effectiveness of an imaginary antenna with no signal loss.

Due to the fact that antenna gain is an indicator that combines efficiency and directionality, external antennas produce the best results. This, however, assumes that you are only looking at points within the antenna’s doughnut-shaped coverage field, pointing in the same direction as the antenna.

Internal antennas, on the other hand, have slightly lower aerial gain but deliver signals more efficiently over a larger area.

No differences in transmission power on internal and external antennas

In Norway, the transmitting power of wireless equipment is strictly regulated by law. All equipment, regardless of whether it has internal or external antennas, is subject to the same maximum limits. Attempting to amplify the antenna often results in the transmission strength exceeding the legal limit. To learn about the rules associated with signal amplification, see the article; Why Boosting Your WiFi Signal Is a Bad Idea.

Internal Antennas + Multipath = Best Indoors

For indoor use, a combination of internal antennas and multi-path technology provides the most consistent coverage and the fewest blind zones, reducing antenna misalignment risk.

So when is it better to use external antennas?

External antennas’ primary strength is their directionality. As a result, they are ideally suited for outdoor use.

WiFi Antenna Pointing for Improved Range and Speed

WiFi Antenna Position and Placement | WiFi Router Range and Direction

Try this Before Buying new Antenna (May be this will solve your problem)

Antenna Polarization

The polarization means the orientation of the antenna compared to the surface of the earth.

Omnidirectional and Directional Wifi antenna

Omnidirectional antennas are antennas that can transmit electromagnetic waves in all direction equally.

Directional wifi antennas are those that radiate power in a single direction only.

Panels, dish antennas, cantennas are examples of Directional Antennas.

WiFi Antenna Power Gain

The wifi strength that can be provided is measured in terms of Power Gain. Power gain points out the effectiveness of an antenna when compared to that of a reference antenna.  It is measured in decibels (dB).

Power is mentioned in terms of dBi value, which is the gain of that antenna in terms of an Isotropic radiator. The greater the dBi longer will be the range of WiFi. For the Best High Gain WiFi Antenna, you need better dBi level.

Best WiFi Routers for 2021

Here is a list of cheap and affordable Best Wifi Routers for this 2021

Wi-Fi antenna varies widely depending upon the application. Sometimes what you want is to increase the Wi-Fi range of your home wi-fi network. Sometimes you will want to transmit the signal to long distance or receive Wi-Fi signal from a faraway source. If you are a penetration tester you will have to perform various injection attacks against Wi-Fi networks which are really far away.  Sometimes you will have to capture Wi-Fi handshake from wireless networks. In that case, you will have to reach out to that and network from a far away distance. In Order to become a good Wi-Fi hacker, you will need to have the best Wi-Fi adaptor and Wi-Fi cards connected to the best Wi-Fi antenna.

So finding the best Wi-Fi antenna that satisfies your needs might be a headache. Here is a list of worlds Best High Gain WiFi Antenna which can provide long range WiFi that are used in homes, offices and top hackers to hack into WiFi networks which are located far away from the attackers.

Why not make a PCB for your Project?

Making a PCB for your DIY project is not hard nowadays. PCB helps to get rid of all messy wires and stuff and gives your project an awesome look. And it’s cool to make your own PCB for your project right?

I use Altium Designer to draw the circuit and design the PCB. It is a powerful tool that can be used to design and create your own PCBs for your project as well as complex and multiplayer PCBs for industrial use. Here is the link to the Altium trial version. So make sure you check it out.

I use Altium Designer to draw the circuit and design the PCB. It is a powerful tool that can be used to design and create your own PCBs for your project as well as complex and multiplayer PCBs for industrial use. Here is the link to the Altium trial version. So make sure you check it out.

Ordering High Quality PCB for Cheap Price

I usually order our PCBs from PCBWay. PCBWay is a PCB manufacturer specializing in PCB prototyping, low-volume production, and neat and tidy PCB Assembly for a very low price. They have a very friendly customer support team and even perform a free PCB Design Review before payment and inform us if there is some issue with the design. Feel free to check out their website below.

Long Range WiFi Antenna


Best WiFi Antenna of 2021

1. Alfa 9dBi WiFi Booster SMA OMNI Directional WiFi Antenna

Alfa is the prime of WiFi adapters as well as WiFi antennas and produces the Best WiFi Antennas available in the market. This is one of the best Wifi antennas with awesome WiFi coverage that is available on the market. This Alfa Antenna will boost up the signal as well as WiFi strength of your wireless network. Alfa’s super-powered omnidirectional WiFi antenna can be used as a replacement for both WiFi router antennas as well as USB WiFi adapter antennas. Since it is omnidirectional, there is no need for much precision in placement as it emits WiFi signal in all direction.

Omni Directional WiFi Antenna
Omni Directional WiFi Antenna

Buy it Now

Due to its omnidirectional properties, the installation is very easy. The magnetic pod that comes with the package can be mounted over any surface over which antenna can be placed. This is by far one of the Best High Gain WiFi Antenna you can get online. Get yours now.

Works With all of the Models Below and With many other routers as well

Linksys

WET54G, WET54GS, WMP54G, WMP54GS, WET11, WRV54G, WMP11 PCI Card, WPS11, WRT54GC, WRT54GL
Netgear

R6700-100NAS, R6220-100NAS, FM114P, FVM318, FWG114P, MA311, ME101, ME103, WG302, WG311, WG311T,
D-Link

DIR-880L, DIR-842, DIR-605L, DIR-825, DAP-1360, DI-514, DI-524, DI-614, DI-624, DI-624S, DI-624M, DI-711, DI-713P, DI-714, DI-714P, DI-724U, DI-764, DI-774, DI-824VUP, DP-311P, DP-311U, DP-313, DP-G321, DP-G310, DPG-2000W, DSL-G604T, DSM-604H, DSM-622H, DSM-624H, DWL-1000AP, DWL-1700AP, DWL-1750,
Alfa

AWUS036H, AWUS036H1W, APA05, AWUS036NH, AWUS036NEH, AWUS048NH, AWUS036EW, AWUS051NH, AWUS036AC, AWUS036EAC, AWUS036ACH, AWUS052NH, AWUS052NHS, AWUS1900, U24
ASUS

RT-AC3200, Wireless-AC3200, Asus RT-N12 D1, RT-AC68U, RT-N66U, RT-N12

TRENDnet
TEW-731BR

TP-Link
Archer C7, AC1900, AC3150

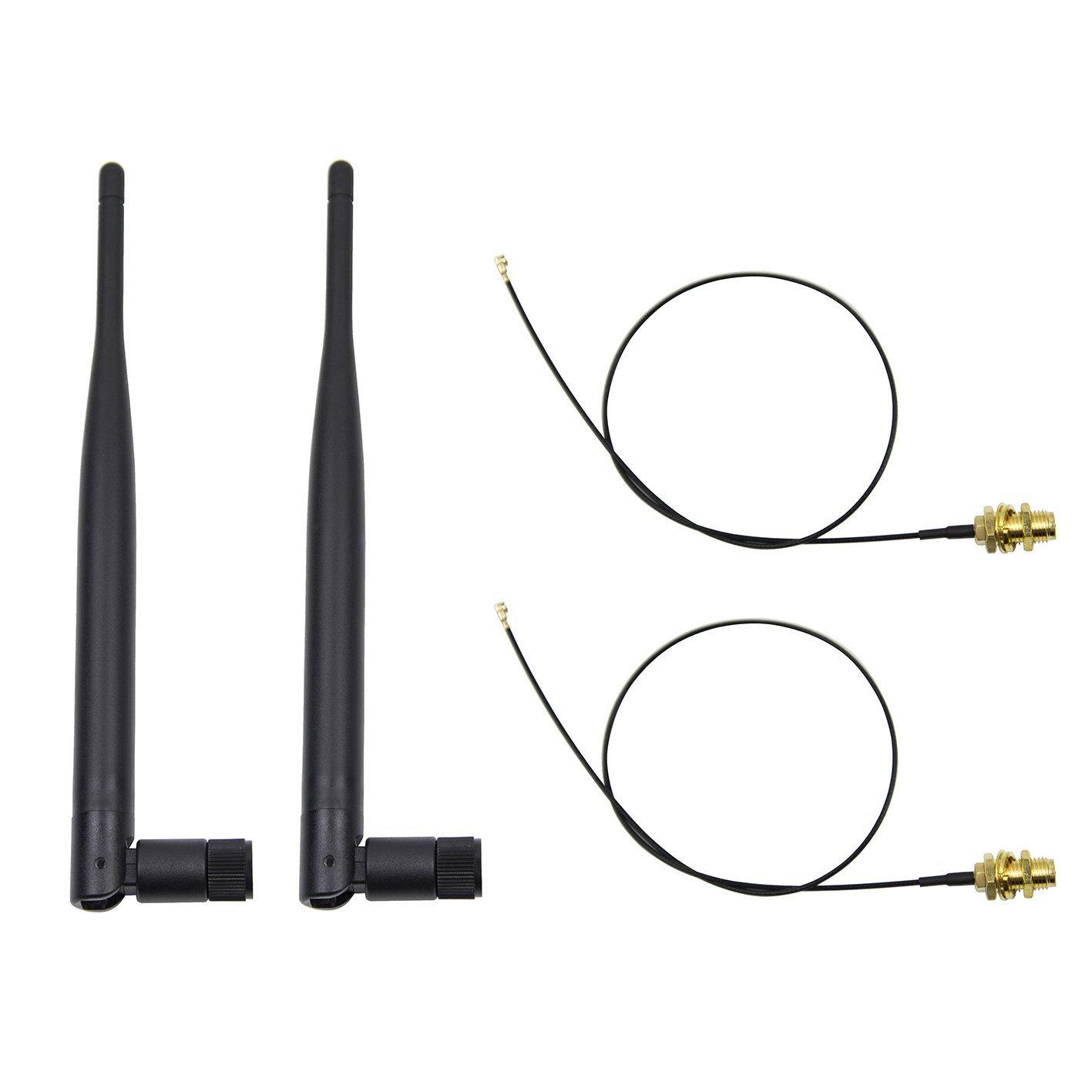

2. Highfine 2 x 6dBi 2.4GHz 5GHz Dual Band WiFi RP-SMA Omni Directional WiFi Antenna

These are one of the most widely used external long-range WiFi antennas which will boost up your Internet range as well as speed. These are High-Quality Dual-band Antennas which is specifically designed for Routers. This includes 2 x 6dBi 2.4GHz 5GHz Dual Band WiFi RP SMA Antenna. In addition to that, it also has a 2 x 35cm U.fl / IPEX to RP-SMA WAN Pigtail Cable. with a gold-plated connector.

Dual Band Omni Directional WiFi Antenna

Buy It Now

Best WiFi Router Antenna Specifications

Compatible with Wireless Routers:
Linksys Cisco E2000 E2500 EA2700 E3000 EA3500 E4200 EA4500 EA6200 WRT310N WRT320N WRT330N WRT400N WRT610N WRT54GS2
Belkin F7D8301
Netgear N600 N750 N900 WN2500RP WNDR3300 WNDR3400 WNDR3700 v.2 v.3 WNDR3800 WNDR4000 WNDR4500 WNR834B v. 1 v.2 WNR2000 WNR2200 DGND3700 v.1 v.2
D-Link DIR-655
Buffalo WZR-HP-G450H
Mini PCIe Cards
Network Extension Bulkhead Pigtail PCI WiFi WAN Repeater

NOTE: Only use for Mini PCI-E Interface, CAN NOT USE FOR M.2 (NGFF) Interface.
Please check and confirm your cards interface before purchase.

Product dimensions are as follows:
6dBi RP-SMA Antenna Length: 19.5 cm
IPEX Cable Length: 35cm

Package Includes:
2 x 6dBi Antenna
2 x 35cm U.fl / IPEX Pigtail Cable


3. HUACAM HCM82 8dBi 2.4GHz 5GHz 5.8GHz Dual Band Wireless Network Omni Directional WiFi Antenna

This is similar to that of the previous one in the list. But unlike the previous one, this one has a better gain of 8 dBi. This high-gain Omni Directional 8dBi  Wifi antenna can be used with a WiFi Router, USB adapter as well as Booster. This one can be attached to any device which supports a removable antenna and has the provision of replacing the inbuilt antenna. This one also includes an IPEX to RP-SMA Female Bulkhead Cable/Adapter.

Best Dualband WiFi Antenna

Buy It Now

Due to its omnidirectional properties, it is very easy to install and position. This high-gain antenna can deliver you high-speed internet as well as network connectivity to every corner of your house.

4. Alfa 2.4HGz 7dBi RP-SMA Panel Screw-On Swivel Directional WiFi  Antenna

This one is another awesome product from ALFA in the list of Best WiFi Antennas. Coming from the Alfa family this is one of the most widely used and trusted ones on this category. This can be connected to all routers and USB WiFi adapters with an RP-SMA connector. This antenna can effectively replace the standard ones in your home as well as office routers. They can boost up the speed and range of WiFi signals up to 4 times in one direction. This one of the Best High Gain WiFi Antenna from Alfa.

This is a unidirectional antenna that is to be pointed in a particular direction, which means that the beams will be focused to a particular direction. This can be used in long-range transmission as well as reception purposes.

Alfa Panel Antenna

Buy It Now

5. Alfa APA-M25 dual-band 2.4GHz/5GHz 10dBi Panel Directional WiFi Antenna

This one is similar to the previous one; a long-range uni-direction antenna, which will give you a focused beam that is apt for long-distance transmission and reception in a particular direction. Unlike the previous one, this one has a greater power of 10 dB and supports dual-band WiFi signals. This is directional and is suited for outdoor purposes.

Buy It Now



6. Tupavco TP513 Yagi Directional WiFi Antenna 2.4GHz 17dBi

Yagi antennas are powerful versions of panel antennas mentioned above. These antennas can have a transmit power over a longer distance. These antennas a long, strong, and sleek mostly made in aluminum –  which makes them lightweight. They are specifically designed for outdoor uses. They have a stronger and focussed beam which a 25-degree beam width which makes them really long-range wifi antennas.

You can easily connect this Wifi antenna to a wifi router or USB wifi adapter that support replaceable antennas and point it out through your window, or fix it on the roof of your house and point it to a building where you want to transmit the signal which makes it a good choice available on the market.

WiFi Yagi Antenna

Buy It Now


8. Antenna World G2424 Directional Range Booster WIFI Parabolic Grid Antenna

Last but not least. This directional is an outdoor antenna with a long range. This is the Best high-gain WiFi Antenna available in the market which can provide a long-range, strong, and powerful point to point connection between the source and the receiver which is far away. This 24dBi parabolic grid antennas can provide up to 8 miles of connectivity towards a particular direction. The package includes tighter and precision parts for fitting and pointing it in the desired direction.

This one supports 2.4 GHz Wi-Fi signals and standards 802.11 b, 802.11 g, 802.11 n  that can supports faster data transfer speed of up to 150mbps. These antennas have a narrow bandwidth of 7 degrees  which makes it highly directional improving the gain

Long RAnge WiFi Antenna for Wifi

Buy It Now

From the above list, you can select the one that best suits your needs. You can increase the maximum Wi-Fi range get fast internet and to access Wi-Fi networks very far away without changing the router USB Wi-Fi adaptor.

Here is a list of World’s Top and Widely Used WiFi Routers. Make sure you buy one of them for better Range and Speed WiFi Connection.
